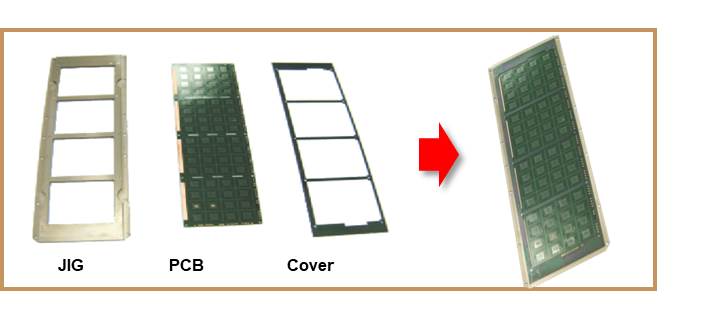

STRIP & JIG LOADING & MARKING SYSTEM
SEMICONDUCTOR STRIP & JIG LOADING & MARKING SYSTEM
본문
SPECIFICATION
- SPH : 400
- Cassette M/Z to Cassette M/Z
- Marking position control : within ± 80 μm @ 3 sigma by CO2 Laser
- Vision system : Marking Quality Inspection
- Highly Precise Positioning by location pin or Vacuum block with servo control at Marking Zone
- Quick conversion time: within 10 minutes
- Compact machine design
- Dust collector
- CA 62/74/77.5/95mm Convertible
- System control : PLC or PC
- Fool-proof design allowing No Package damage
